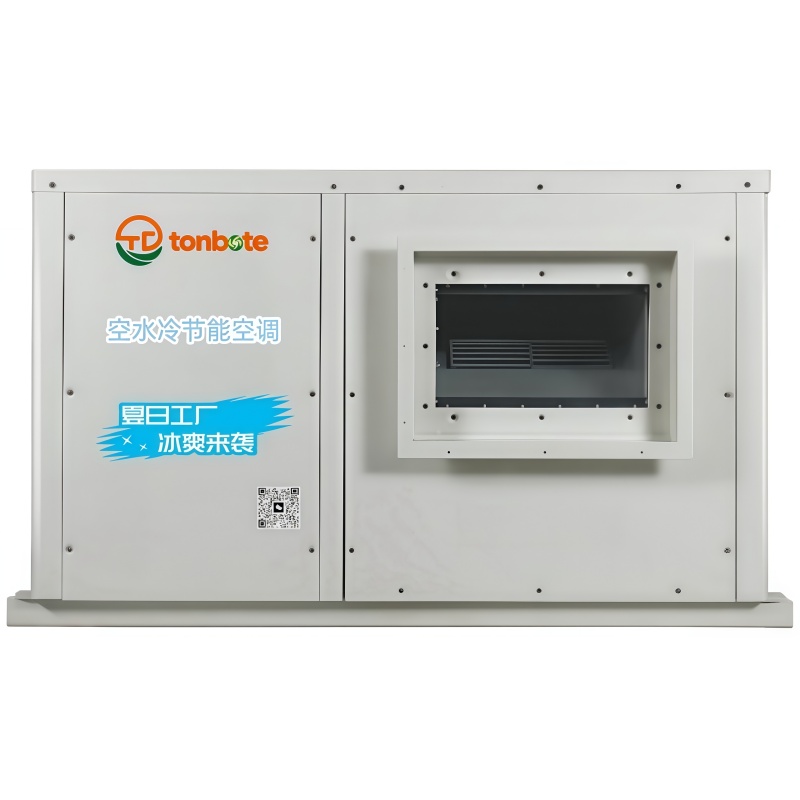

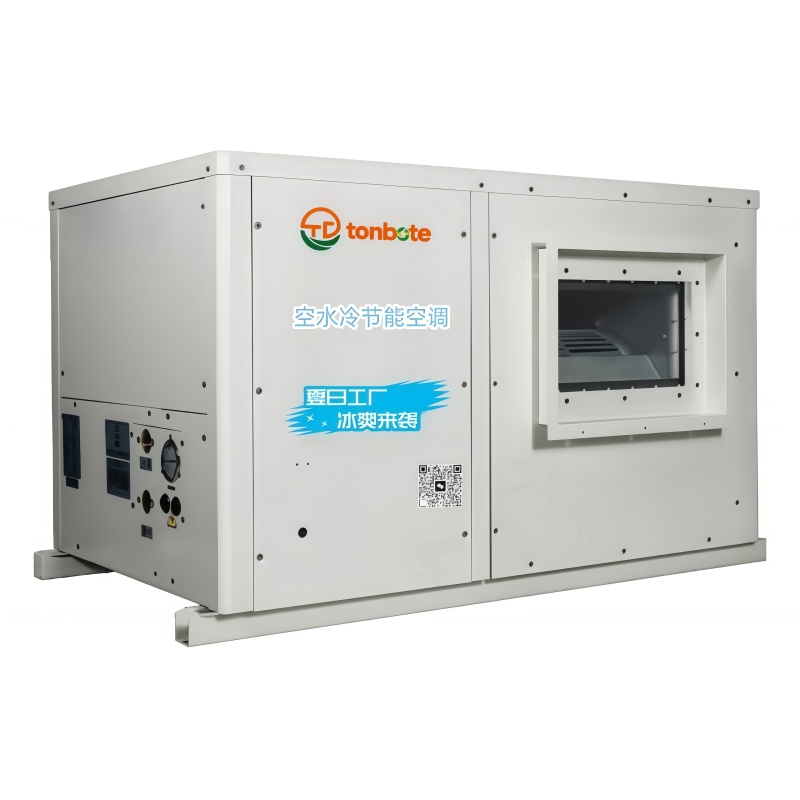

Industrial Energy Saving Air Conditioning:Pipeline horizontal type

The Tongbaote Hanging Industrial Energy Saving Air Conditioning is a cutting-edge solution tailored for the demanding cooling needs of industrial environments. Inspired by the superior performance of large central air conditioning systems, this innovative hanging unit combines the benefits of water-cooled evaporation with the flexibility of split-system control.

At the heart of this air conditioner is its remarkable energy efficiency. Boasting an energy efficiency ratio (EER) ranging from 4.5 to 5.5, it maintains optimal performance even in extreme heat, overcoming the limitations of traditional air-cooled systems that struggle in temperatures above 43°C. This ensures consistent and reliable cooling, crucial for maintaining industrial operations.

The Tongbaote Hanging Industrial Energy Saving Air Conditioning is designed with cost-effectiveness in mind. It utilizes an economical and performance-optimized power range for each module, allowing for standalone installation or integration into a small-scale central air conditioning system at a reduced cost compared to traditional systems.

Maintenance of this air conditioner is simplified to the utmost. Routine cleaning and inspections are all that's required to ensure smooth and reliable operation, saving you time and resources. The hanging design also provides easy access for maintenance personnel, further enhancing its user-friendliness.

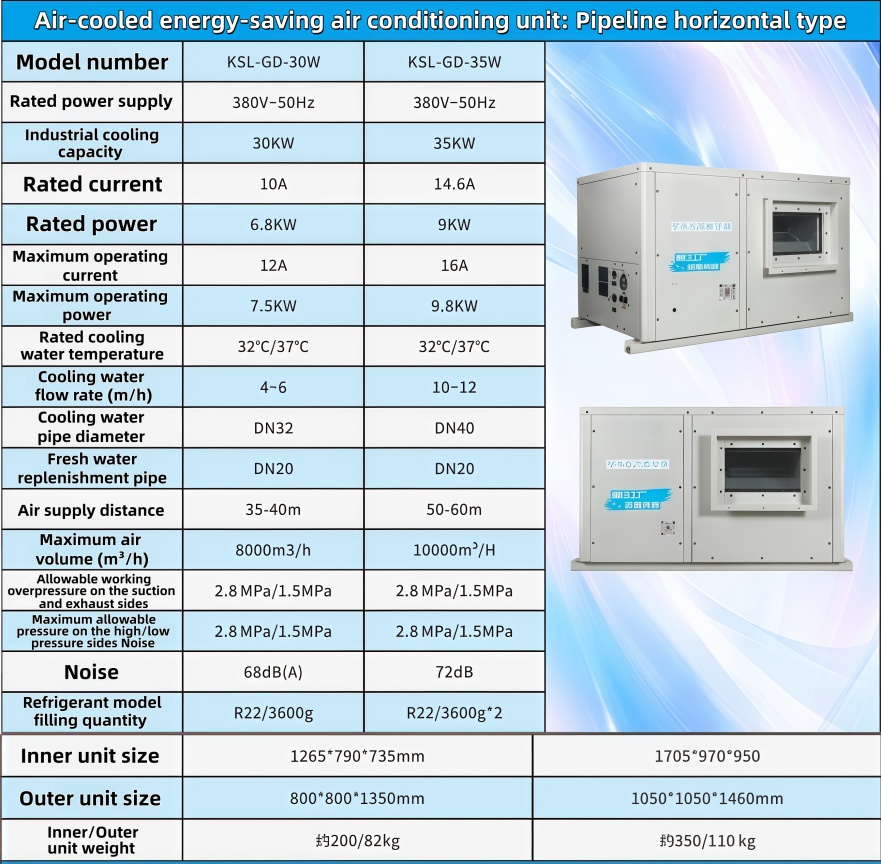

Available in standard models with cooling capacities of 22KW and 35KW, the Tongbaote Hanging Industrial Energy Saving Air Conditioning offers flexibility to meet varying industrial cooling needs. With airflow options of 5000m³/h and 8000m³/h, it can effectively cool large spaces while maintaining a comfortable working environment. Customizable large-scale models are also available for specific applications.

 The unique hanging design of this air conditioner not only saves on space but also ensures maximum air circulation, eliminating the need for ductwork. This further enhances its energy efficiency and cooling performance.

 In addition, the Tongbaote Hanging Industrial Energy Saving Air Conditioning features an efficient wet-type water curtain cooling system. This advanced technology ensures maximum cooling efficiency while minimizing energy consumption. The indoor and outdoor units are connected using PVC water pipes, eliminating the need for complex refrigerant piping and insulation, making installation quick and easy.

 Overall, the Tongbaote Hanging Industrial Energy Saving Air Conditioning is an exceptional choice for industrial environments seeking a cost-effective, energy-efficient, and maintenance-friendly cooling solution. Experience the power of evaporative cooling with Tongbaote today.

Feature And Application

This air conditioner has remarkable advantages. In terms of energy saving, it consumes less power but has a large cooling capacity, saving 40 - 50% more energy than traditional air conditioners with first-level energy efficiency of air cooling. It has a strong cooling performance, a high cooling capacity per unit, and a large cooling area, which can cool down to 10 degrees indoors. The installation is simple and the cost is low, and it can be operated by electricians and plumbers. It has rich functions such as cooling and dehumidification, and has a high-quality filter screen. It is intelligently controlled and can be remotely controlled by a mobile phone APP. Maintenance is easy, the location of important parts and the design of the filter screen are convenient. The performance is stable, and high-quality components are used with low noise and high efficiency. It is suitable for various factories such as shoe factories and food factories, and is an ideal choice for solving the cooling problem.

Product features:

1. Low power consumption, large cooling capacity. Compared to traditional air-cooled first-level energy-efficient air conditioners, it saves 40-50% of energy.

2. Large cooling area. The single unit can provide a cooling capacity of 22KW-35KW, capable of cooling an area of 150-200 square meters.

3. Simple installation, low installation cost. No need for professional air conditioning technicians to install. Plumbing and electricians can complete the installation.

4. Suitable for high ambient temperatures. It can provide strong cooling even when the ambient temperature is between 45-60°C.

5. Has cooling and dehumidification effects. The indoor temperature can be lowered to 16 degrees.

Introduction to Air-Water Cooling Energy-Saving Air Conditioners

1. Product Features

Air-water cooling energy-saving air conditioners can provide normal cooling without failure even in ambient temperatures ranging from 50-60°C.

2. Energy Input

Optional photovoltaic direct-drive module. Photovoltaic can be prioritized or supplemented by grid power. It can be used with or without photovoltaic.

3. Cooling Characteristics

When the ambient temperature is below 25°C, the natural cooling mode does not activate the compressor. In the 25-35°C mixed cooling mode, the compressor assists in cooling. In the 35°C above cooling mode, the compressor starts to cool.

4. Cooling Energy Efficiency Ratio

Compressor cooling mode COP is about 4.6. Mixed mode COP is between 5-8. Natural cooling mode COP is above 10.

5. Comprehensive Energy Saving Rate

Compared to air-cooled air conditioners, the annual cooling energy saving rate is 50%-80% (depending on the regional environment).

6. Main Application Scenarios

Suitable for high-voltage substations, high-voltage frequency converter rooms, low-voltage distribution rooms, low-voltage frequency converter rooms, communication base stations, data centers, etc., where there is a large amount of electrical heat generation and requires year-round cooling.

7. Working Modes
     The working mode automatically switches based on the ambient temperature and the return air temperature: mechanical refrigeration mode / compressor refrigeration, mixed mode / compressor-assisted refrigeration, natural cooling mode / compressor shutdown.
