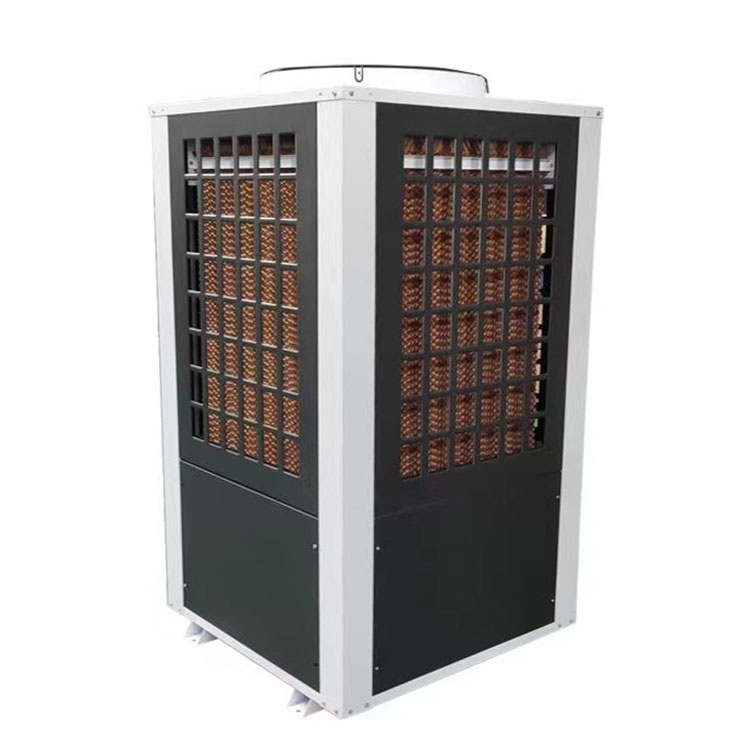

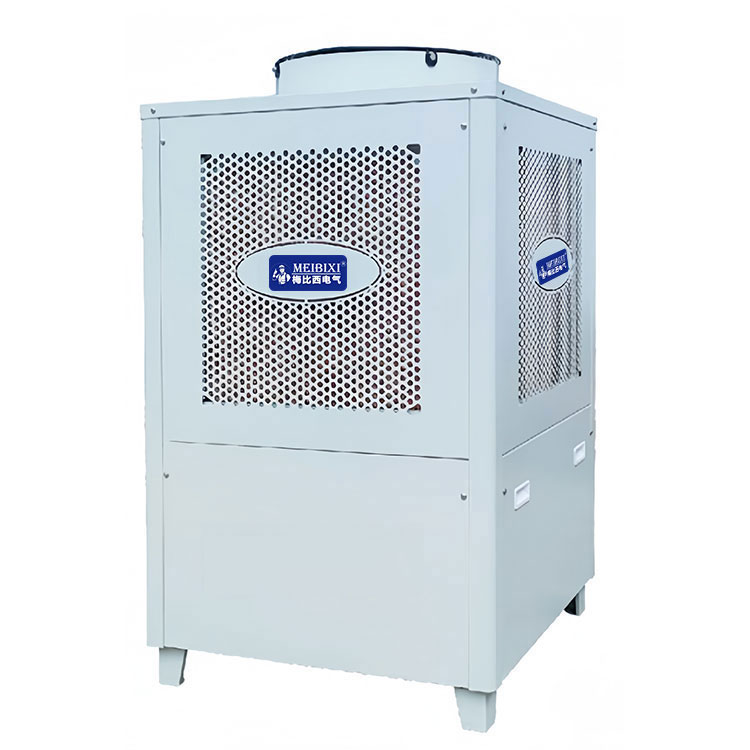

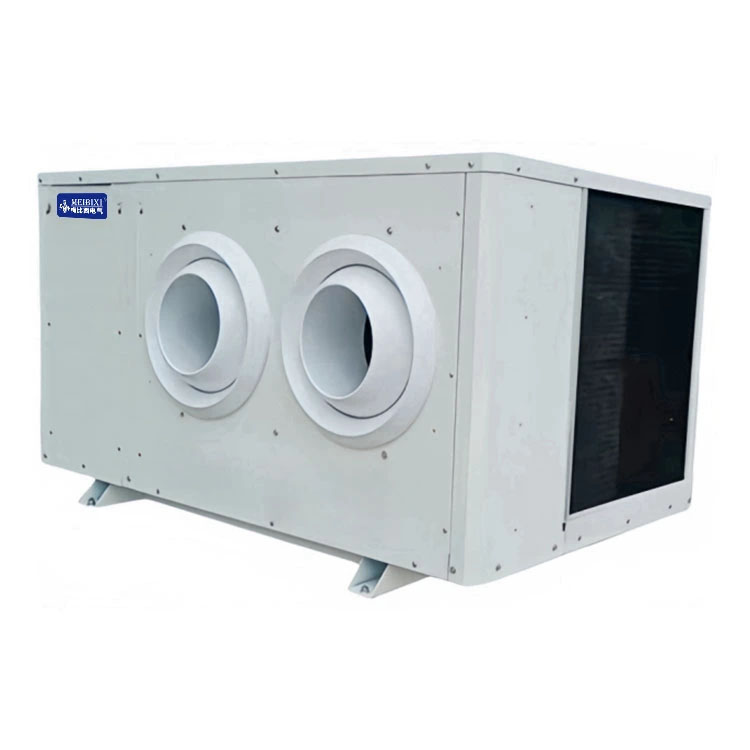

Efficient Power Saving Industry Air Conditioner

China Tongbaote Efficient Power Saving Industry Air Conditioner is a domestically produced evaporative cooling air conditioner developed on the basis of large central air conditioners. It assimilates the prominent advantages of water-cooled evaporation and high energy efficiency ratio of large central air conditioners, while integrating the merits of split-unit control found in small air conditioners, thereby creating a new type of energy-efficient air conditioning unit. The energy efficiency ratio of its refrigeration system can reach between 4.5 and 5.5. Even in scorching hot weather, it can sustain the outstanding performance of a high energy efficiency ratio, successfully resolving issues such as the inability of ordinary air-cooled air conditioners to function properly when the ambient temperature exceeds 43 degrees or the significant reduction in the refrigeration energy efficiency ratio.

This Efficient Power Saving Industry Air Conditioner selects the most ideal power band in terms of economy and cost performance as a single module. It can be installed individually or form a small-scale central air conditioning system, and its price is more affordable compared to central air conditioning. Maintenance of the air conditioner is also effortless. A straightforward daily cleaning and inspection can guarantee its stable operation, saving you a considerable amount of time and energy.

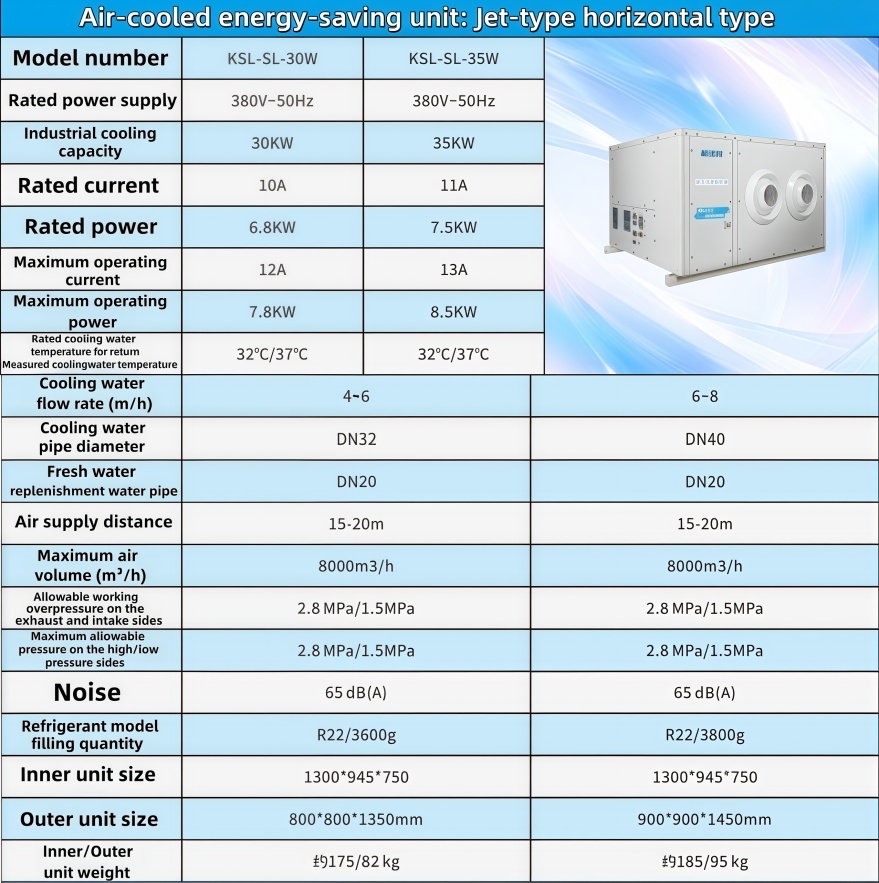

The standard model Efficient Power Saving Industry Air Conditioner offer cooling capacities of 22KW and 35KW, and the standard air volumes include two varieties of 5000 and 8000. Users have the option to choose from these, and customization of large and medium-sized floor-standing modular units is also feasible. The adoption of a high-efficiency wet water curtain cooling machine and the connection between the inner and outer units using PVC ordinary water pipes allows for immediate usage. The pipeline does not require insulation, and there is no need for on-site installation of copper pipes and filling of refrigerant or other specialized operations. Multiple units can be used independently, or a single unit, or in combination, addressing the issue of the entire system's startup for central air conditioning. It enables users to achieve the convenience of a single air conditioner while enjoying the comfort and energy savings of central air conditioning, providing both comfort and energy efficiency.

Product features

1. Low power consumption, large cooling capacity. Compared with traditional air-cooled first-level energy-efficient air conditioners, it saves 40-50% of energy.

2. Large cooling area. The single unit's cooling capacity can reach 22KW-35KW, and it can provide cooling for 150-200 square meters.

3. Simple installation, low installation cost. No need for professional air conditioning technicians to install. Plumbing and electricians can do the installation.

4. Suitable for high ambient temperatures. It can provide strong cooling even when the ambient temperature is between 45-60°C.

5. It has the effects of cooling and dehumidification. The indoor minimum temperature can be reduced to 16 degrees.

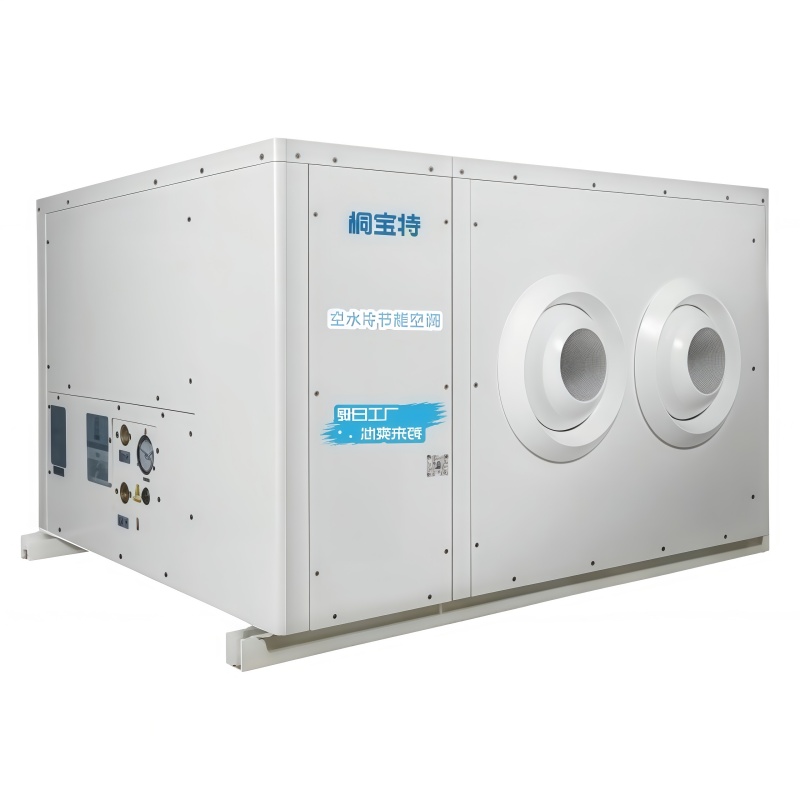

Introduction to Specialized Model Air Conditioning with Water Cooling and Energy Saving Features

1. Product Features

The air-water-cooled energy-saving air conditioner can maintain normal cooling and not shut down even when the ambient temperature is between 50°C and 60°C.

2. Energy Input

Optional photovoltaic direct-drive module can be equipped. It can prioritize photovoltaic power or use grid power as auxiliary power. It can be used whether there is photovoltaic power or not.

3. Cooling Features

When the ambient temperature is below 25°C, the natural cooling mode does not activate the compressor. In the 25°C - 35°C mixed cooling mode, the compressor assists in cooling, and above 35°C, the compressor starts to cool.

4. Cooling Energy Efficiency Ratio

Compressor cooling mode COP is approximately 4.6, mixed mode COP is between 5 and 8, and natural cooling mode COP is above 10.

5. Comprehensive Energy Saving Rate

Compared with air-cooled air conditioners, the annual cooling energy saving rate is 50% - 80% (depending on the regional environment).

6. Main Application Scenarios

Suitable for high-voltage substations, high-voltage frequency converter rooms, low-voltage distribution rooms, low-voltage frequency converter rooms, communication base stations, data rooms, etc., where there is significant electrical heat generation and year-round cooling is required.

7. Working Modes
The working mode automatically switches based on the ambient temperature and the return air temperature: mechanical refrigeration mode / compressor refrigeration, mixed mode / compressor-assisted refrigeration, natural cooling mode / compressor shutdown.
