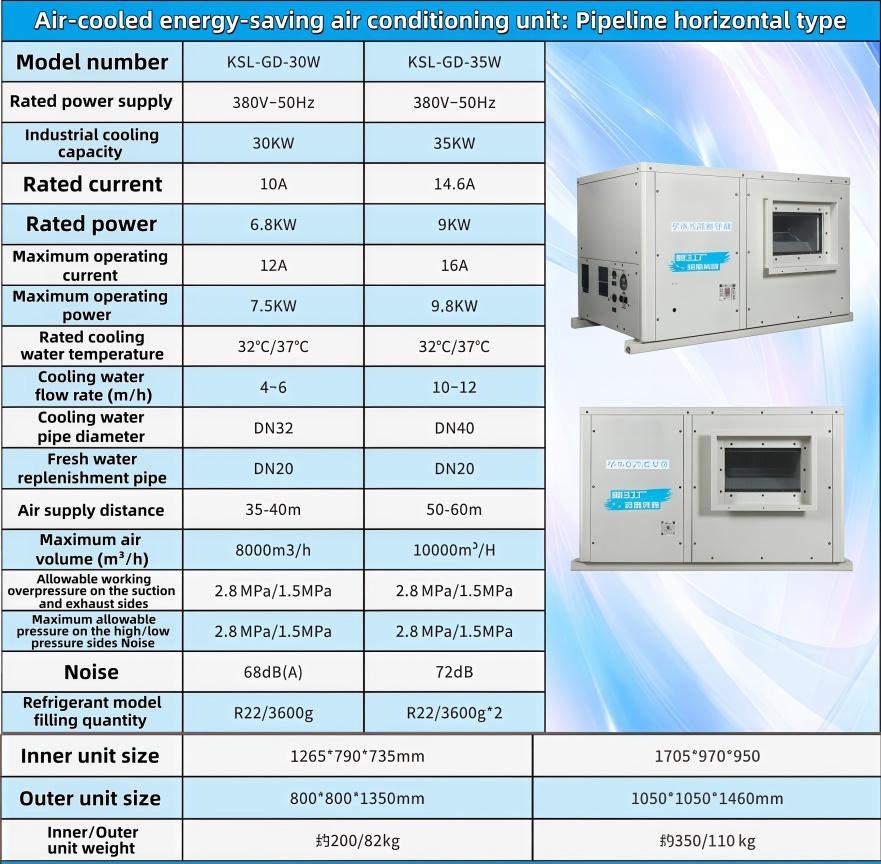

Air-cooled Energy-saving Air Conditioning Unit: Pipeline Horizontal Type

This Tongbaote Hanging Industrial Power Saving Air Conditioner is an evaporative cooled air conditioner manufactured in China, which is developed based on large central air conditioners. It capitalizes on the remarkable advantages of water-cooled evaporation with a high energy-efficiency ratio of large central air-conditioners and concurrently integrates the benefits of small air-conditioners with split-unit control to create a novel energy-saving air-conditioner. The energy efficiency ratio of its refrigeration system can range between 4.5 and 5.5, and it can still uphold the outstanding performance of a high energy efficiency ratio during hot weather, effectively resolving issues such as the failure of general air-cooled air conditioners to operate normally when the ambient temperature exceeds 43 degrees or the significant reduction in the refrigeration energy efficiency ratio.

The Hanging Industrial Power Saving Air Conditioner selected the most optimal economic and cost-effective power band as a single module. It can be installed independently and is also capable of forming a small-scale central air-conditioning system, with a price lower than that of central air-conditioning. Moreover, the air conditioner is effortless to maintain. Just a simple daily cleaning and inspection can guarantee its stable operation, saving you a considerable amount of time and energy.

Standard model products offer cooling capacities of 22KW and 35KW, and standard air volumes of 5000 and 8000 air volumes in two varieties for users to select. Moreover, customized medium and large-sized floor-standing modular units are also available. The adoption of a high-efficiency wet water curtain cooling machine enables connection between the indoor and outdoor units using PVC ordinary water pipes for immediate use. The pipeline doesn't require insulation and there's no need for professional operations such as on-site installation of copper tubes and filling refrigerant. It can be used independently by multiple units or a single unit or in combination. This solves the problem of the entire system of central air conditioning being turned on at once, achieving the goal of turning on where needed. It allows users to enjoy the convenience of single air conditioning while experiencing the comfort and energy saving of central air conditioning.

Tongbaote Hanging Industrial Power Saving Air Conditioner Feature And Application

In today's age of energy efficiency and comfortable environments, an exceptional air conditioner is the ideal choice for many establishments.

This air conditioner has a number of compelling features. Firstly, it is energy efficient, it consumes less electricity but has a large cooling capacity, compared with the traditional air-cooled air-conditioner with primary energy efficiency, the energy saving range is as high as 40 - 50%, which significantly reduces the cost of electricity for you. Cooling capacity is even more powerful, single cooling capacity of up to 22KW or more, cooling area is broad, can easily meet the needs of 150 - 200 square meters of space. Whether it's a hot summer day or an extreme ambient temperature of up to 60 degrees, it can continue to cool strongly, even dropping the indoor temperature to 10 degrees.

Installation is easy and inexpensive, and can be done by an ordinary plumber. The outer unit is easy to install and the inner unit is flexible, which can be adapted to various complex installation environments. It has various functions, not only can it effectively cool down the temperature, but also has excellent dehumidifying effect, and the multi-dimensional washing filter can let you enjoy the fresh and natural air.

Intelligent control is another highlight, fully automatic microcomputer control, you can also add a cell phone APP remote control, so you can control the indoor temperature anytime, anywhere. Convenient maintenance, the important parts of the host are indoors, which reduces the risk of maintenance, and the high-density filter can be disassembled and cleaned, which is convenient and hassle-free. Stable performance, using national standard parts, reliable quality, low noise and high efficiency during operation. High-quality configuration, such as Panasonic original compressor, Schneider contactor, etc., ensures its excellent performance.

In terms of application, it is suitable for all kinds of factories, whether it is a shoe factory, food factory, furniture factory, injection molding factory, garment factory or hardware factory, can professionally solve the factory cooling problems, create a comfortable working environment for workers and improve production efficiency.

Product features

1. Low power consumption, large cooling capacity. Compared with traditional air-cooled first-level energy-efficient air conditioners, it saves 40-50% energy.

2. Large cooling area. The single unit's cooling capacity can reach 22KW-35KW, and it can provide cooling for 150-200 square meters.

3. Simple installation, low installation cost. No need for professional air conditioning technicians. Plumbing and electricians can install it.

4. Suitable for high ambient temperatures. It can provide strong cooling even at 45-60°C.

5. Has cooling and dehumidification effects. The indoor minimum temperature can be reduced to 16 degrees.

Specialized air-water-cooled energy-saving air conditioner introduction

1. Product features

The air-water-cooled energy-saving air conditioner can provide normal cooling without failure even in an environment temperature range of 50-60°C.

2. Energy input

It can be equipped with a photovoltaic direct-drive module. It can prioritize photovoltaic or use auxiliary power from the grid. It can be used with or without photovoltaic.

3. Cooling features

When the ambient temperature is below 25°C, the natural cooling mode does not activate the compressor. In the 25-35°C mixed cooling mode, the compressor assists in cooling. In the 35°C above cooling mode, the compressor starts to cool.

4. Cooling energy efficiency ratio

Compressor cooling mode COP = 4.6, mixed mode COP = 5-8, natural cooling mode COP = 10 or above.

5. Comprehensive energy-saving rate

Compared with air-cooled air conditioners, the annual cooling energy-saving rate is 50%-80% (depending on the regional environment).

6. Main application scenarios

Suitable for high-voltage substations, high-voltage frequency converter rooms, low-voltage distribution rooms, low-voltage frequency converter rooms, communication base stations, data centers, etc., where there is a large amount of electrical heat and requires year-round cooling.

7. Working mode

It automatically switches working modes based on the ambient temperature and return air temperature. Mechanical cooling mode / compressor cooling, mixed mode / compressor-assisted cooling, natural cooling mode / compressor shutdown.
