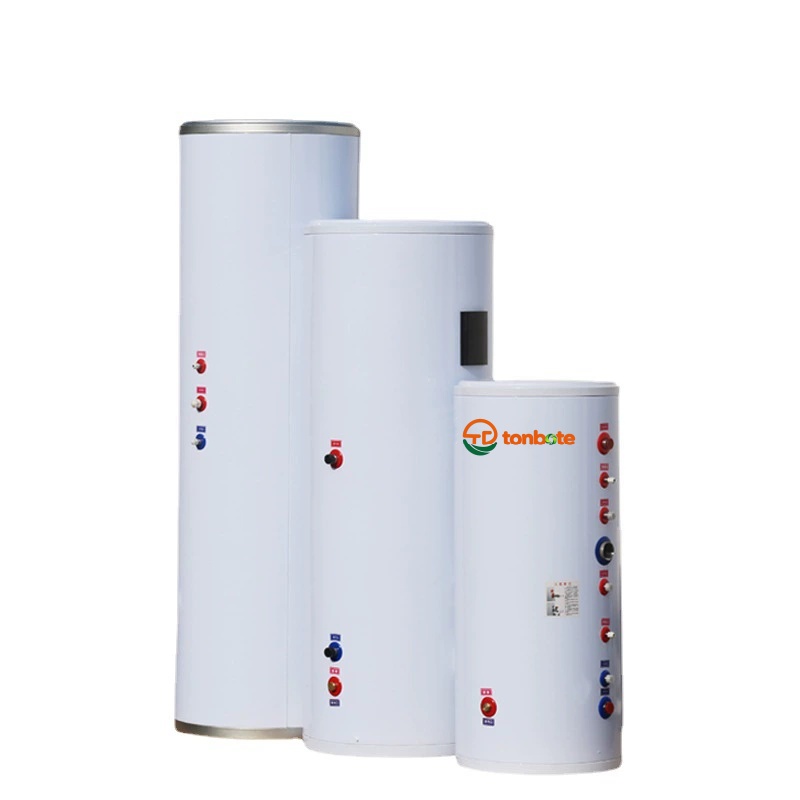

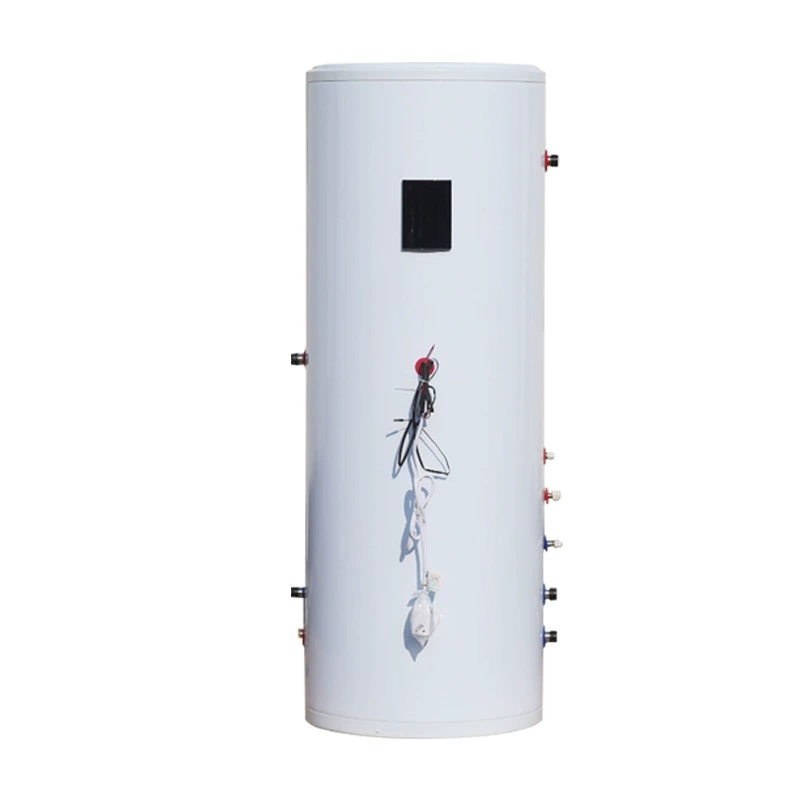

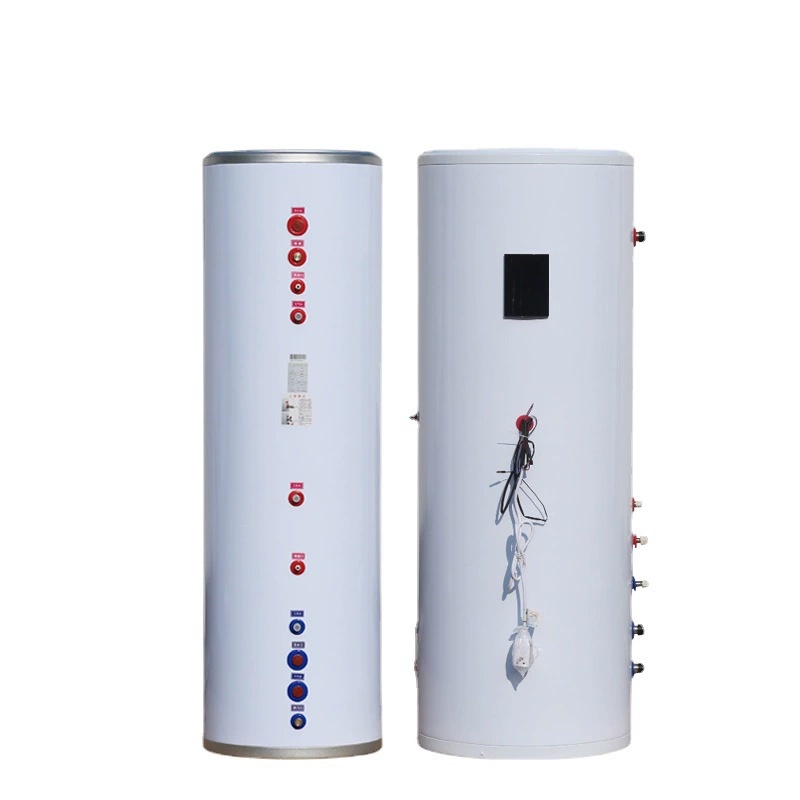

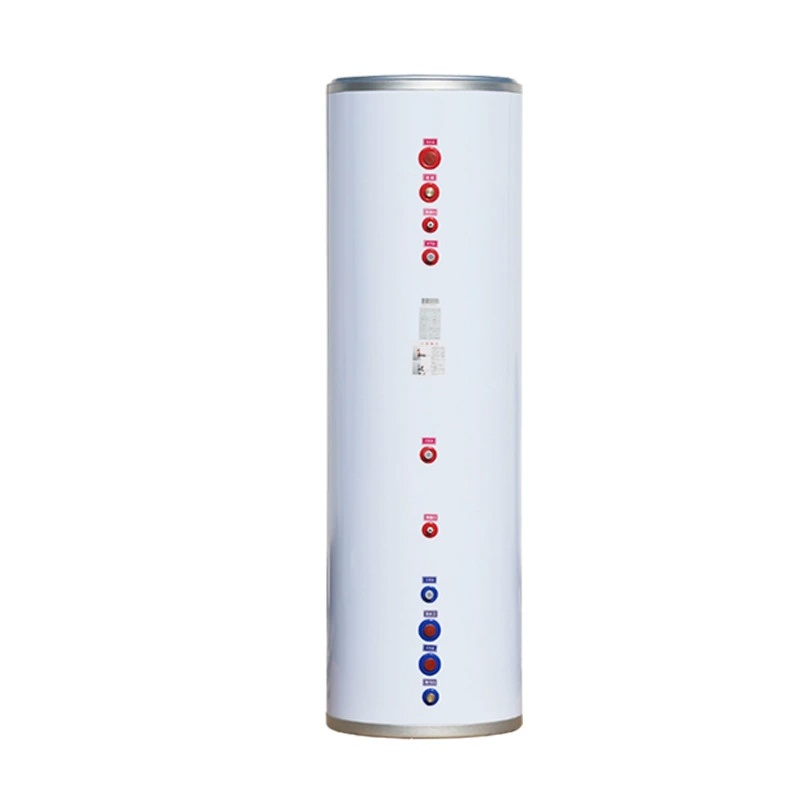

Household water heater pressure-buffering water tank - 304 stainless steel water tank

Product Description:

. The inner liner of the water tank is made of 1.0 - 2.5mm thick food-safe SUS304/316 stainless steel, which does not contaminate the water quality;

. It is welded using Panasonic's fully automatic argon arc welding, with excellent weld formation, significantly extending the service life;

. The water tank is made using polyurethane high-pressure foaming technology, which is one-time molded, providing excellent insulation effect, with a temperature drop of less than or equal to 5 degrees Celsius within a 20-degree ambient temperature environment;

. The water tank shell is made with automotive metal baking paint, being and fashionable， elegant and generous， with various colors to meet customers' personalized needs；

. The heat exchange coil has been optimized in design, using a special jacket to prevent vibration and wear, significantly enhancing the heating efficiency and extending the service life.
  The material of the heat exchange coil can also be nickel-titanium alloy tubes used for making coins, improving the heating efficiency and having a longer service life；

. The volume of the water tank inner liner can be produced from 80L to 1000L；

. The water tank uses rubber foot pads， which never age， have a long service life， and enhance the product safety.

Product advantages:

1. Food-grade SUS304/316 stainless steel, which does not contaminate water quality.

2. Various colors and styles, with high strength, corrosion resistance, no fading or peeling.

3. Uses polyurethane insulation material, providing excellent insulation effect.

4. The heat exchange pipe material can also be made of nickel-titanium alloy tubes used for making coins, improving heating efficiency and having a longer service life.

5. Fully automatic argon arc welding, with excellent weld formation, high strength, and significantly extended service life.

6. The water tank uses rubber foot pads, which do not age easily, are firm and durable, enhancing product safety.

7. Mature high-pressure foaming and molding technology, using polyurethane insulation material, providing excellent insulation effect.

Installation and Usage Instructions:

1. For the connections of all components of the water tank to the water tank, please take measures to ensure sealing to prevent leakage.

2. Please be cautious during installation to avoid personal injury and equipment damage.

3. To ensure the safety of the water tank interface, the installation torque must not exceed 80 N.M.

4. The pressure range of the water tank is ≤ 0.7 Mpa. Do not exceed this pressure range. A safety valve should be installed in the system.

5. The unit should not be installed in places with a lot of dust, high pollutants, corrosive gases and high humidity.

6. Avoid placing the unit in areas exposed to wind, rain, direct sunlight or other places with direct radiation from heat sources.

7. Keep the surrounding environment temperature of the unit at 0 - 40°C, with RH within 75%, good ventilation and less dust.

8. Water quality requirements: Pay attention to the water quality issue of the water used. Scale and debris will have a significant impact on the normal operation of the system.

9. Use strictly in accordance with the guidance of the water tank safety labels.

10. The buffer water tank is connected in series in the system. The water flows in from the top and out from the bottom, placed between the end return water and the water pump.

11. The water filling port of the water tank needs to be equipped with a check valve or a check safety valve to prevent backflow of tap water when the tap water supply is interrupted, causing negative pressure in the inner tank and damaging the inner tank, and damaging the water tank.

12. When draining the water tank, open the hot water outlet valve to ensure that the water tank is in communication with the air.
Do not drain directly. Direct drainage may cause negative pressure in the water tank, causing the inner tank to be sucked in and damaged the water tank.
