Air-powered non-halon insulated water tank, large-capacity pressure-bearing buffer insulated water tank

Product Description:

. The inner liner of the water tank is made of 1.0 - 2.5mm thick food-safe SUS304/316 stainless steel, which does not contaminate the water quality;

. It is welded using Panasonic's fully automatic argon arc welding, with excellent weld formation, high strength, and significantly extended service life;

. It utilizes the world's advanced high-pressure foaming one-time molding technology, using polyurethane insulation material, achieving excellent insulation effect;

. The water tank shell is made of automotive metal paint, being高档 and fashionable， elegant and generous， with multiple colors to meet customers' personalized needs.

The heat exchange coil has been optimized in design， using specially made jackets to prevent vibration and wear， significantly enhancing the heating efficiency and durability at the same time.

The material of the heat exchange coil can also be nickel-titanium alloy tubes used for making coins， further improving the heating efficiency and longer service life；

. The water tank leaves space for installing the main unit， forming an integrated whole with the water tank. The volume of the inner liner of the water tank can be produced from 150L to 400L；

. The water tank uses rubber foot pads， which never age， are firm and durable， enhancing product safety.

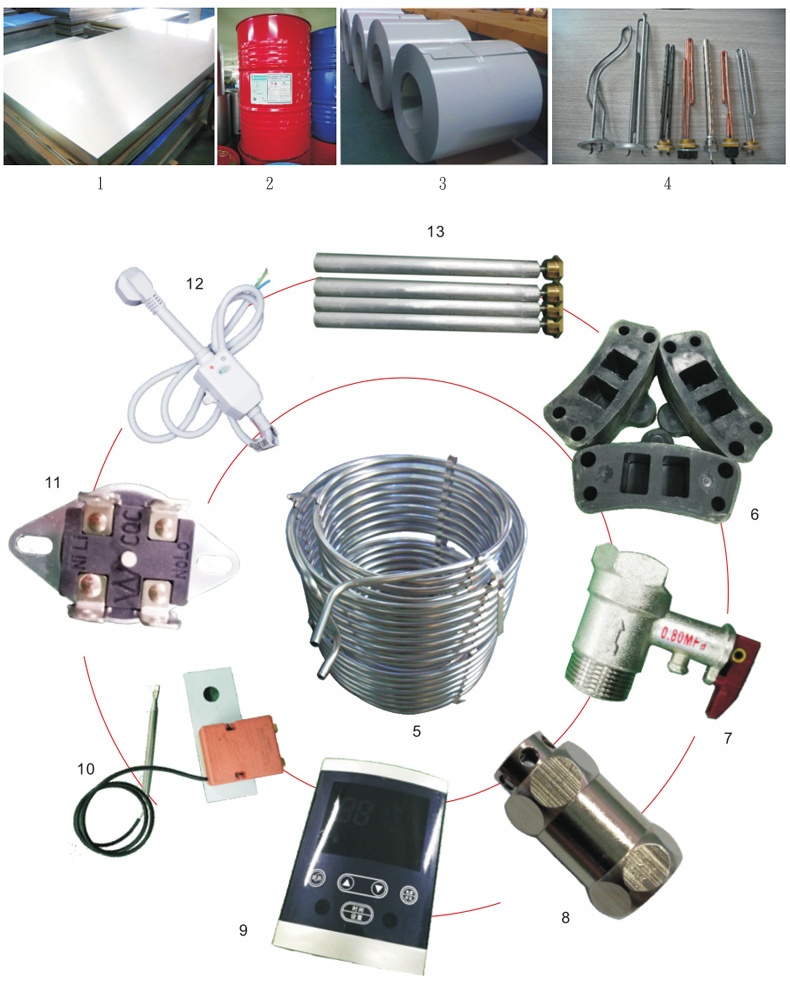

High-quality components:

1. Inner liner sheet: Made of high-quality Baixin board, with excellent tensile strength and guaranteed pressure-bearing capacity, long service life.

2. Foaming material: Polyurethane from China Wanhua, fluorine-free and environmentally friendly, with excellent insulation effect.

3. Color steel sheet: Produced by a major factory, with various colors and styles, high strength, corrosion-resistant, non-fading, and non-peeling.

4. Tube: High-quality 316L stainless steel pipe, capable of withstanding 12.5 MPa pressure, with extremely high pressure-bearing capacity and extremely high corrosion resistance.

It can be designed in double or triple coils, providing excellent heat exchange effect.

5. Rubber feet: Made of EPDM rubber, non-toxic and environmentally friendly, never aging.

6. Safety valve: Copper top pin, long service life, ensuring the safety of water tank pressure.

7. Negative pressure valve: Ensuring that the water tank does not collapse when generating negative pressure.

8. Electric heating: Using Inglise material heating tubes, safe and with a long service life.

9. Intelligent controller: Can be set for timing and temperature, and can control temperature difference circulation. Multiple control modes meet the various control requirements of the system.

10. Mechanical temperature limiter: Limits the temperature of the water tank to ensure user safety and prevent scalding.

11. Anti-dry-burn thermal sensitive switch: Automatically cuts off power when the electric heating is dry-burned, non-automatic reset, ensuring the safety of the water tank.

12. Power cord with leakage protection plug: Certified by CCC, quick power-off, leakage protection expert.

13. Terminal: Refer to the five-star brochure.

14. Magnesium rod: Produced by Beijing Metal Research Institute, significantly increasing the service life of the water tank.
