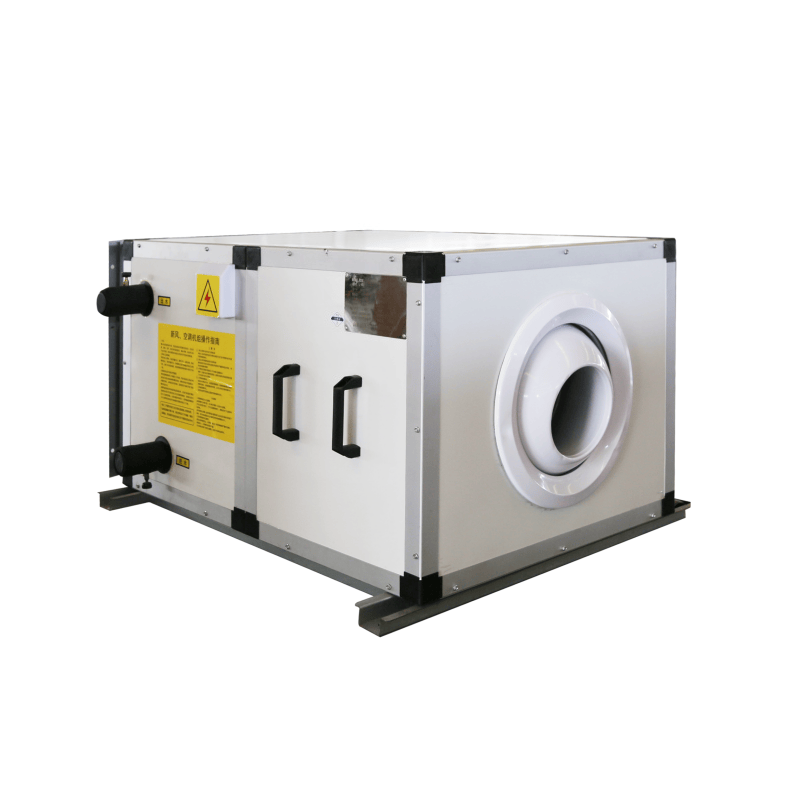

Ceiling Suspended AHU Air Handling Unit

Product Overview

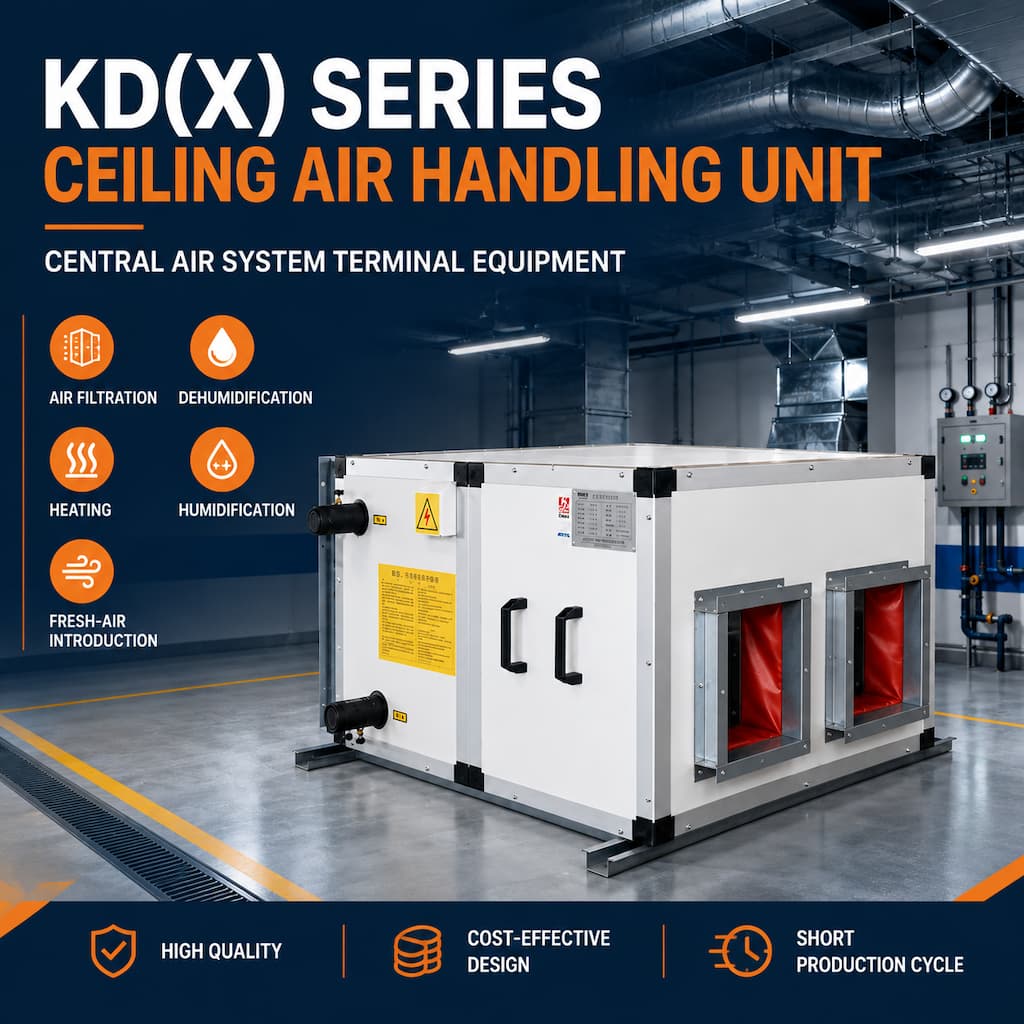

Tongbaote ceiling suspended air handling unit (AHU) is a space-saving central air conditioning air handler, designed to be mounted overhead without occupying valuable floor space. As the core equipment of HVAC systems, it integrates multi-stage air filtration, cooling, heating, humidification, dehumidification and optional heat recovery functions. We provide fully customized AHU configurations to match different airflow, temperature, humidity and cleanliness requirements for commercial and industrial projects.

Our AHUs adopt modular double-skin panel structure with anti-cold-bridge design and high-density insulation, featuring low air leakage, low noise and stable long-term operation. EC fan options are available to cut energy consumption and running costs. Each unit is fully tested before delivery and meets European standards with CE certification.
Core Features
✅ Ceiling suspended installation, save floor space, easy for transport, on-site assembly and routine maintenance

✅ Modular flexible configuration: filter section, cooling/heating coil, humidifier, heat recovery, EC fan section optional

✅ Precise constant temperature & humidity control, ideal for controlled environment projects

✅ Multi-stage filtration options (MERV / HEPA), support cleanroom air quality requirements

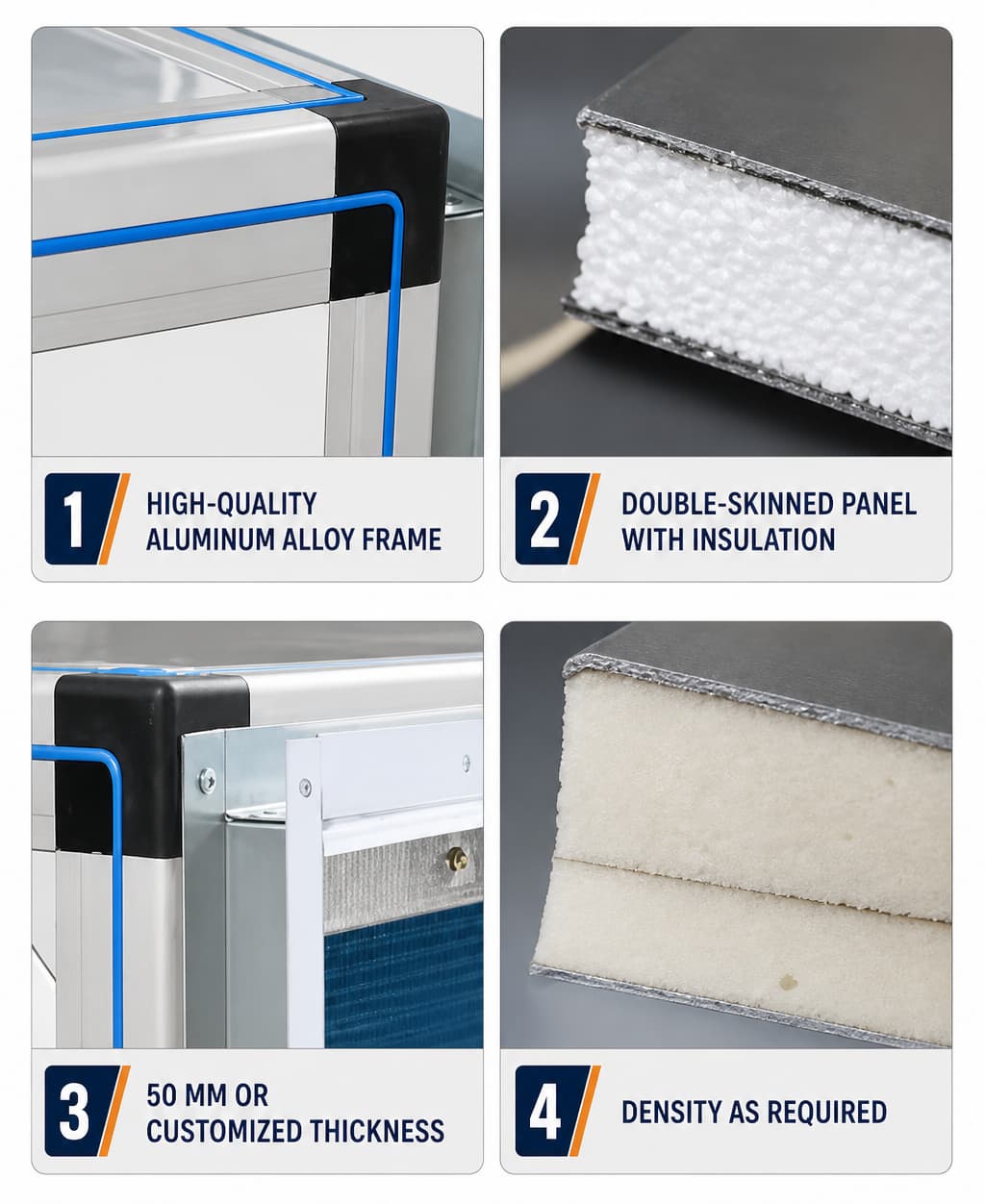

✅ Anti-cold bridge insulated casing, prevent condensation and heat loss

✅ Compatible with BMS / Modbus smart control for remote monitoring

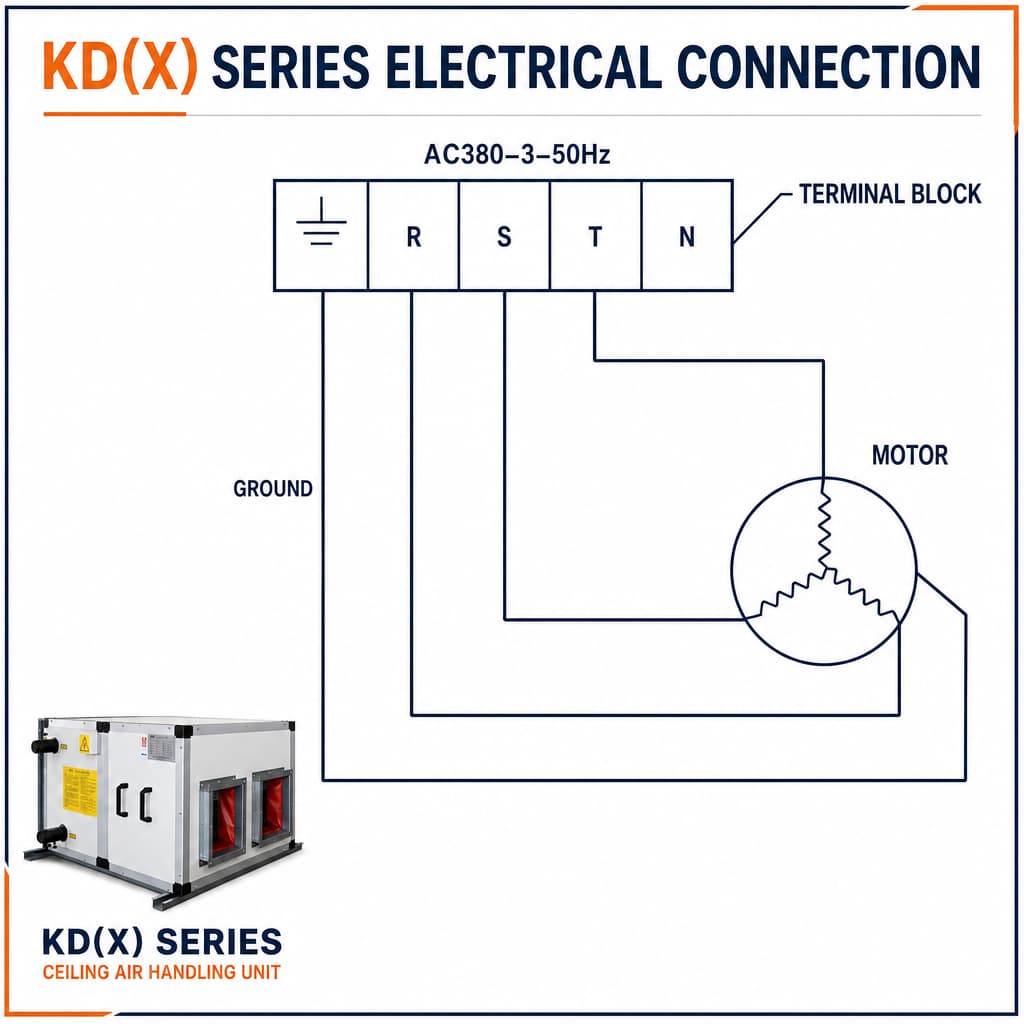

✅ Wide voltage options: 220V/380V/415V, support T3 tropical working condition

✅ OEM & ODM custom service: airflow, size, material, function sections can be customized as project drawings

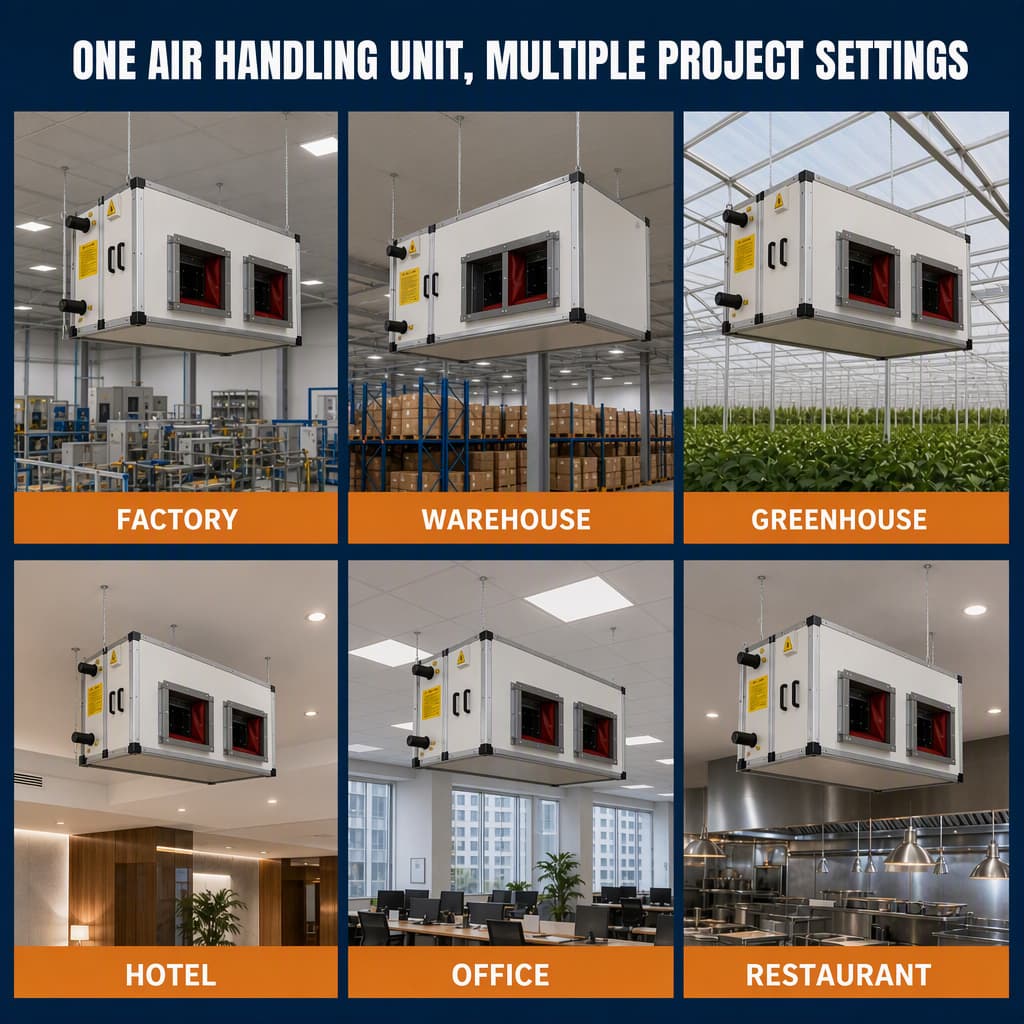

Application Scenarios

-Cleanroom & pharmaceutical workshop

-Hospital, operating room and medical facilities

-Laboratory & electronic manufacturing factory

-Hotel, shopping mall, office building and commercial complex

-Food processing workshop, warehouse and industrial production lines

Technical Highlights

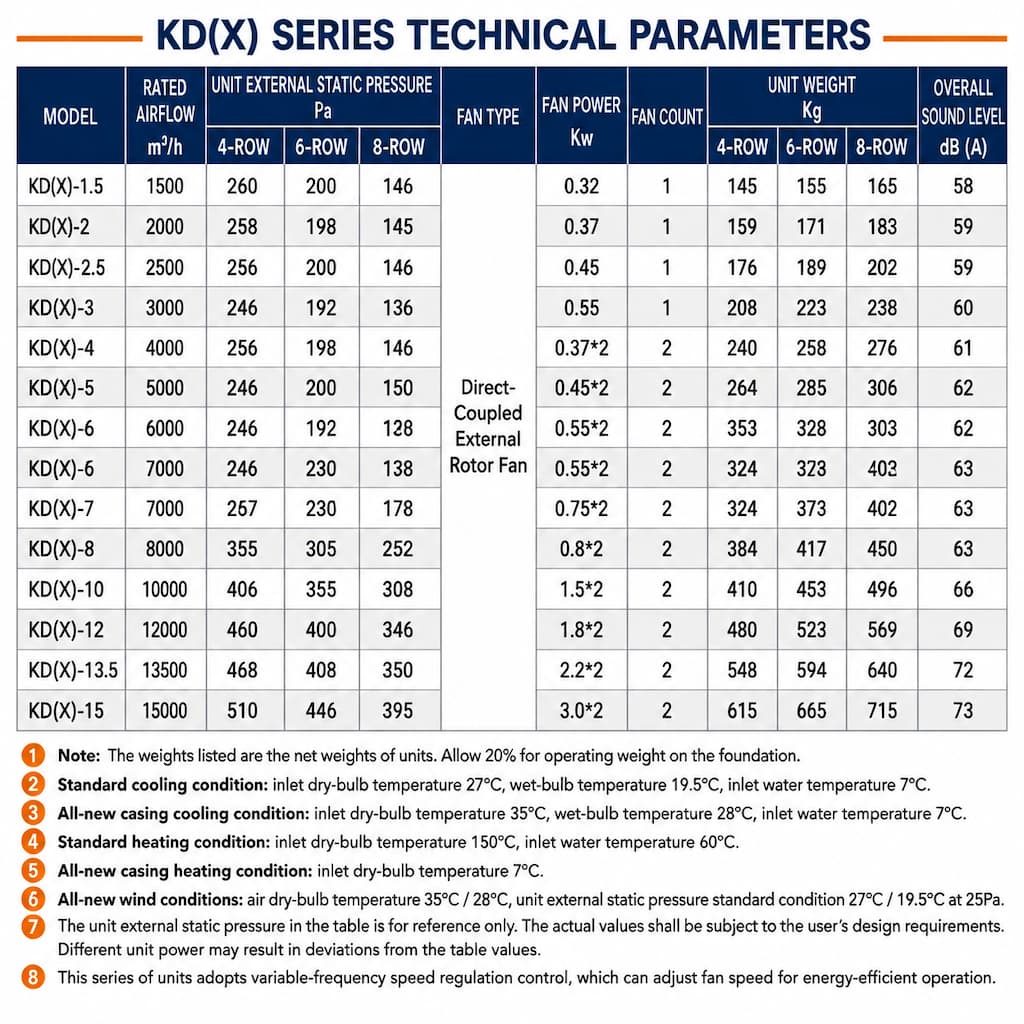

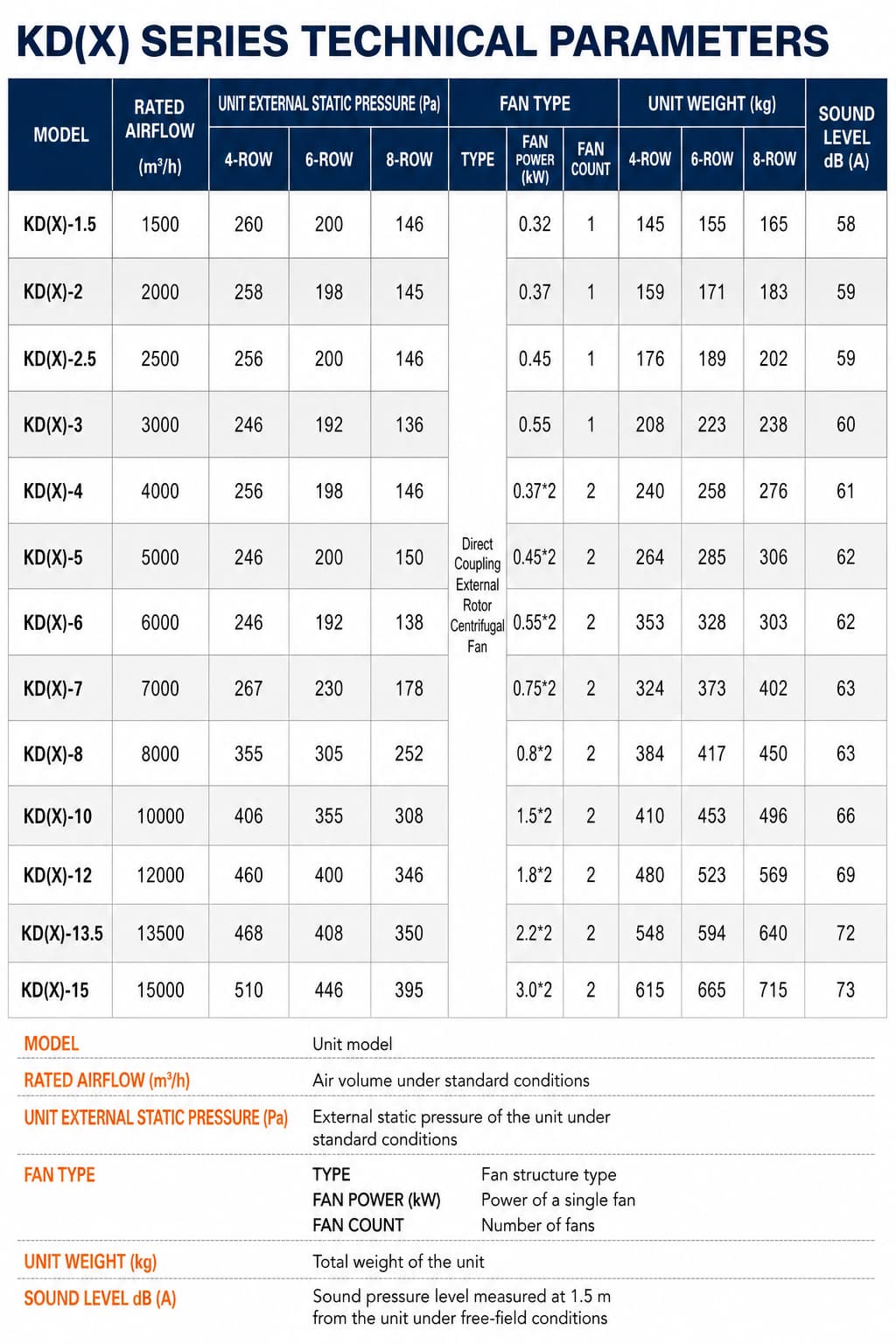

Airflow range: 1000 ~ 60000 m³/h, customizable

Casing: Galvanized steel / stainless steel optional, 25–50mm insulation panel

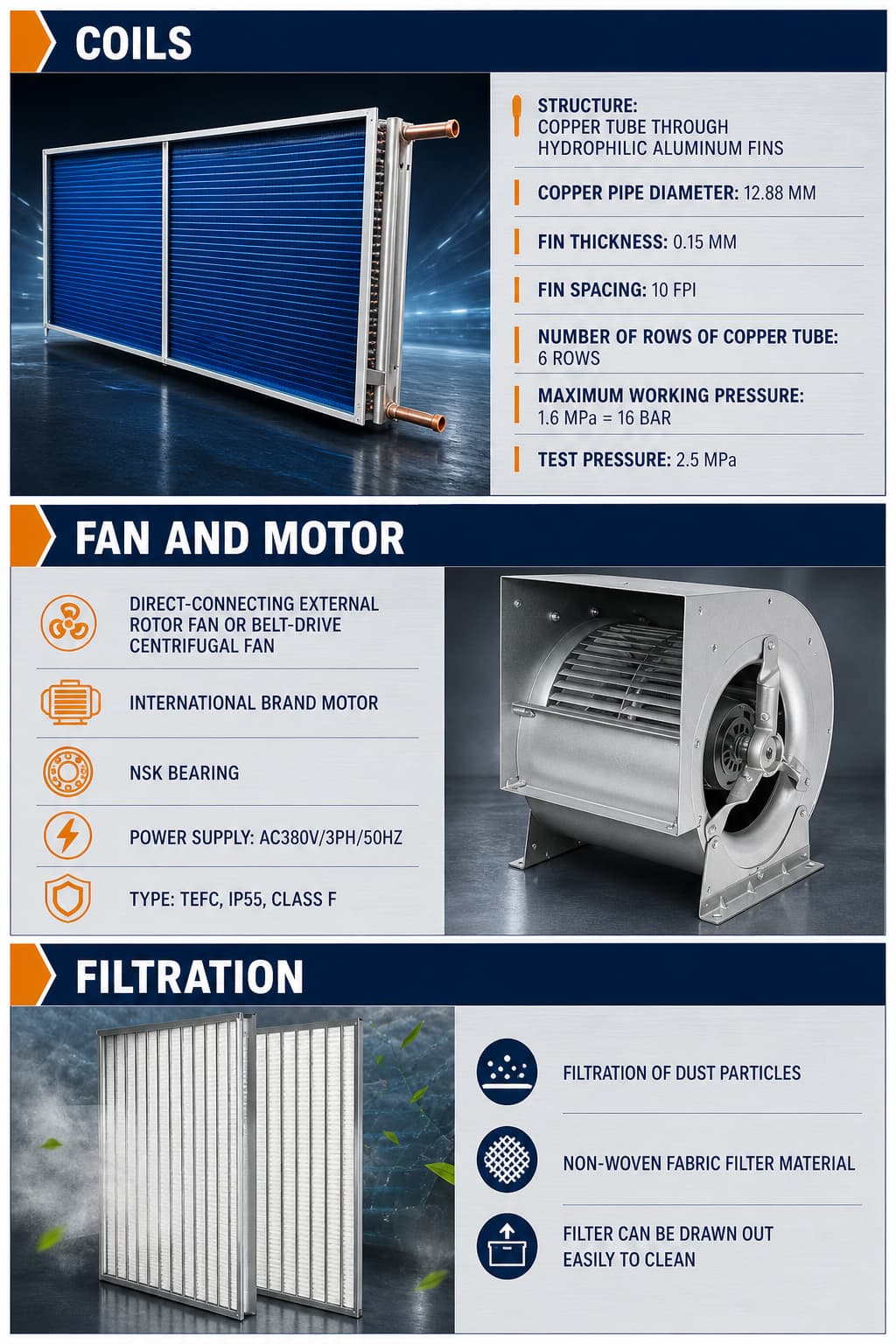

Fan: AC centrifugal fan or high-efficiency EC fan

Coil: Copper tube with aluminum fin, stainless steel coil optional for corrosive environment

Filter: Primary / medium efficiency filter, H13 HEPA filter for cleanroom

Control: PLC controller, compatible with building management system
Why Choose Tongbaote AHU
We are a professional HVAC manufacturer with 35+ years technical experience and 18 years export history. Our AHU products follow European design standards and pass strict performance tests. We have delivered HVAC solutions to over 40 countries across Europe, America, Middle East and Southeast Asia.

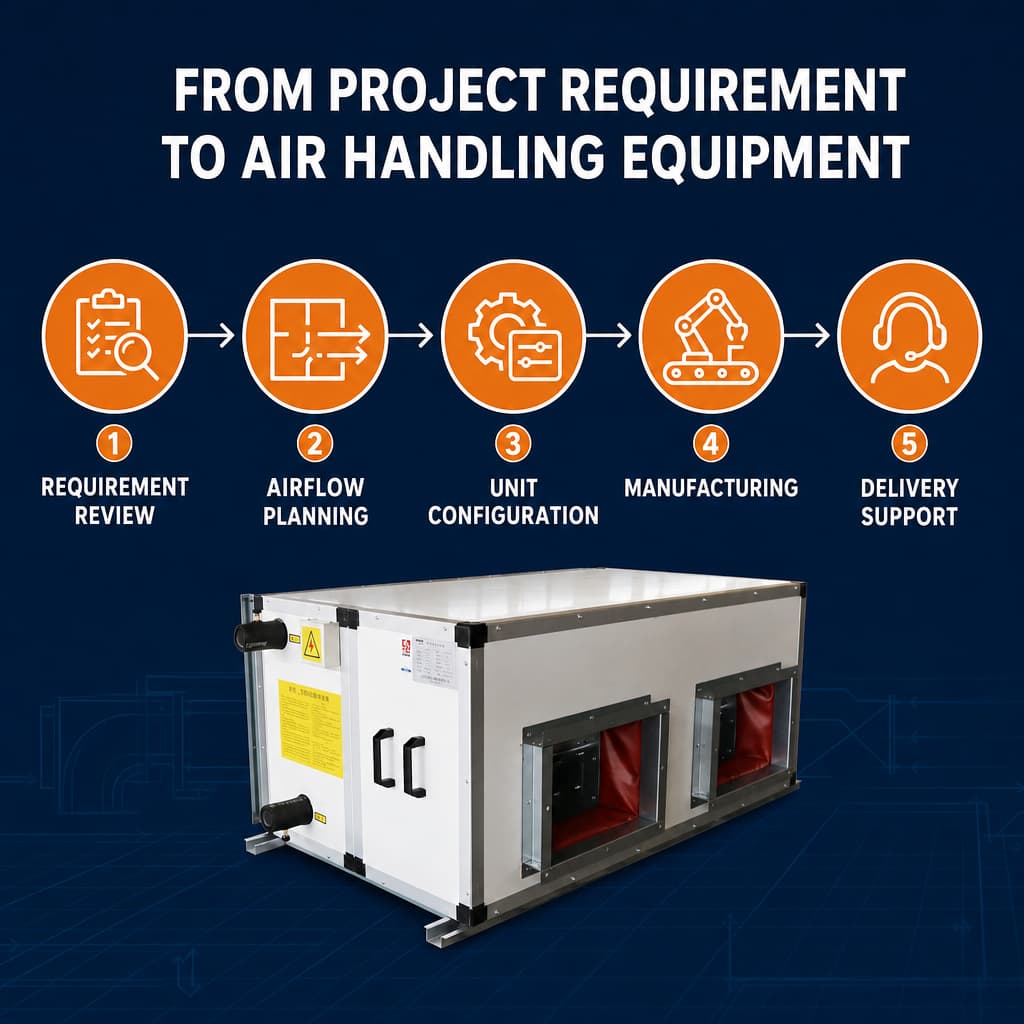

From site survey, custom design, manufacturing, installation guidance to after-sales support, we deliver one-stop intelligent energy-saving HVAC solutions. We support non-standard customization for special industrial working conditions, and can match AHU with fan coil units to form a complete central air conditioning system.
Inquiry Prompt
Contact us now to share your project parameters, airflow, temperature and cleanliness requirements. Our engineering team will provide professional AHU solution and quotation for your project.
