Rated heating capacity (kW):
17.8Rated heating power (kW):
5.24Low-temperature heating capacity (kW):
11.6Low-temperature heating power (kW):
5.04-20°C heating capacity (kW):
10.5-20°C heating power (kW):
4.97Rated cooling capacity (kW):
10.5Rated cooling power (kW):
4.2Maximum input power (kW):
7Maximum input current (A):
32（10.7）Refrigerant type:
R410ANoise dB(A):
59Weight (kg):
108Product dimensions: length x width x height (mm):
960x380x1270Connection pipe dimensions:
1-inch inner threadWater flow rate (m/h):
3Water resistance value (kpa):
60Rated COP:
3.4Power supply:
220V/50Hz(380V/50Hz)

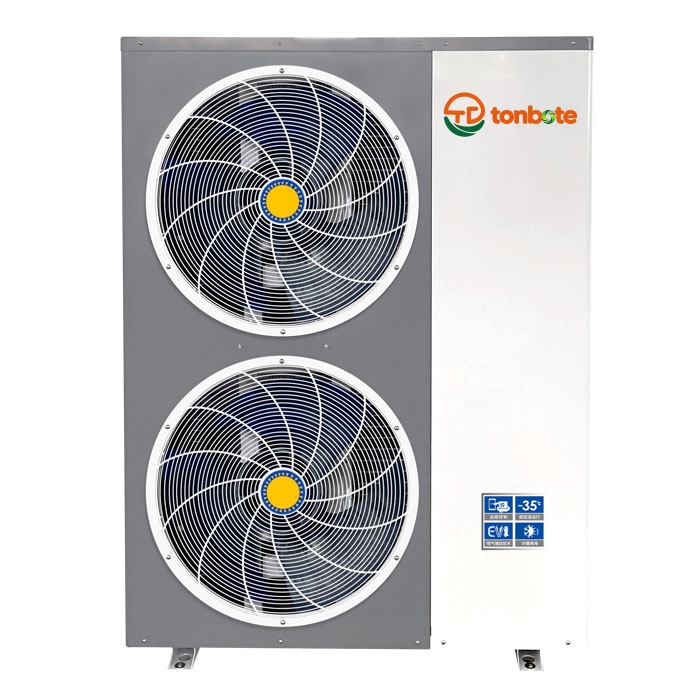

Our Multi-connected Air To Water Heat Pump, also known as Inverter Air To Water Heat Pump, comes with remarkable features. It has an outstanding heat recovery function. In summer, while cooling, it can recycle the generated heat to produce domestic hot water. In winter, the heat exchanger can raise the water temperature in the tank up to 60 °C during heating. The subcooling heat exchange adopts a professional cooling scheme, utilizing groundwater and cooling towers, combining "water cooling + air cooling" for efficient heat exchange. With an air source + water source multi-heat source combined supply mode, it achieves a high COP of up to 7.5, ensuring low energy consumption and energy conservation. It's truly a multi-purpose machine, suitable for summer cooling and winter heating, and can be connected to underfloor heating, radiators, etc., creating a comfortable living environment. The variable frequency dual-source design and the organic combination of heat recovery during cooling with the hot water system make it 30 - 40% more energy-efficient than similar products in cooling/heating modes. Choosing our dual-source multi-connected host can reduce overall energy consumption by 30 - 40%. Adding a water source cooling outdoor unit can double the cooling effect and is 30 - 45% more energy-efficient than traditional air conditioners. It's applicable to residences, villas, apartments, office buildings, hotels, and commercial supermarkets. Due to different house types and areas, users need to rationally select the host according to the whole-house air conditioning load, heating area, the daily number of people using domestic hot water, and usage habits. Please communicate with our engineers about the actual usage situation for proper configuration.
Operating conditions:
Heating operation: Ambient dry-bulb temperature 7°C, wet-bulb temperature 6°C, inlet water temperature 40°C, outlet water temperature 45°C.
Low-temperature heating operation: Ambient dry-bulb temperature -12°C, outlet water temperature 41°C.
Refrigeration operation: Ambient dry-bulb temperature 35°C, wet-bulb temperature 24°C, inlet water temperature 12°C, outlet water temperature 7°C.
The capacity of the unit changes with the variation of the ambient temperature. Please consult the technical engineer.
If there are changes in specifications and parameters due to product improvements, the actual machine nameplate parameters shall prevail.
