Integrated energy-saving solar collector residential villa solar water heater

Product Description:

. The inner liner of the water tank is made of 1.0-1.5mm thick food-safe SUS304/316 stainless steel, which does not contaminate the water quality;

. It is welded using a Panasonic fully automatic argon arc welding machine, with a long service life;

. The water tank is made of polyurethane insulation material, which is one-time molded by high-pressure foaming, providing excellent insulation effect.
  Under an environmental temperature of 20 degrees, the temperature drop during the day and night is ≤ 5°C;

. The outer shell of the water tank is made of automotive metal baking paint, which is fashionable， and elegant， with various colors to meet individual needs；

. The inlet and outlet water system of the water tank has been optimized， and is well integrated with solar heat collectors or vacuum tubes for natural circulation；

. The volume of the inner liner of the water tank ranges from 80L to 320L for selection.

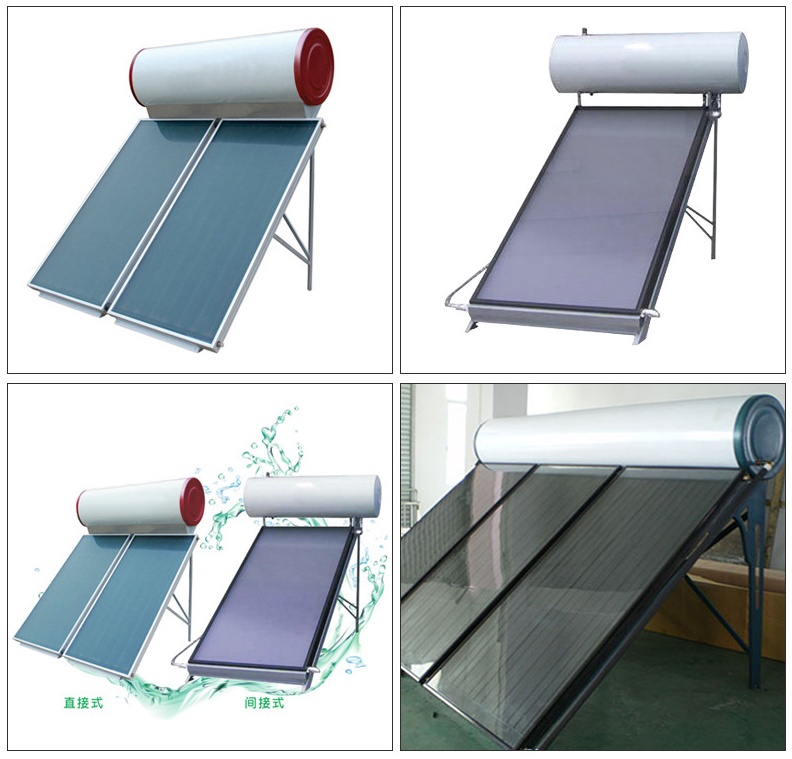

. The direct type is suitable for non-freezing areas， while the indirect type (tubular type) is suitable for freezing areas.

Product advantages: Long lifespan, energy-saving and power-efficient, safe and environmentally friendly

1. Made of high-quality materials, with excellent tensile strength, guaranteed pressure-bearing capacity, and long service life.

2. Produced by a major factory, the color-coated steel plate has diverse colors and styles, high strength, corrosion resistance, and no fading or peeling.

3. Free of fluorine, with excellent insulation effect.

4. Utilizing high-quality intelligent controllers, it can be set for timing and temperature, and control temperature difference circulation. Multiple control modes meet the various control requirements of the system.

5. Using EPDM rubber base plates, non-toxic and environmentally friendly, not prone to aging.

6. Using mechanical temperature limiters to restrict the water tank temperature, ensuring user safety and preventing scalding.

7. Equipped with safety valves and copper pins, with a long service life, ensuring the safety of water tank pressure.

8. Using heat-sensitive switches to prevent dry burning: when electric heating is dry-burning, it automatically cuts off power, and does not reset automatically, ensuring the safety of the water tank.

9. Using negative pressure valves: to ensure that the water tank does not be sucked when generating negative pressure.
