Air energy fluorine cycle pressure-bearing water tank, circular stainless steel constant pressure water storage tank, fluorine cycle pressure-bearing insulated water tank

Product Description:

. The inner liner of the water tank is made of 1.0 - 2.5mm thick food-safe SUS304/316 stainless steel, which does not contaminate the water quality;

. It is welded using Panasonic's fully automatic argon arc welding, with excellent weld formation, significantly extending the service life;

. The water tank is made using polyurethane high-pressure foaming technology, which is one-time molded, providing excellent insulation effect, with a temperature drop of less than or equal to 5 degrees Celsius in a 20-degree environment;

. The water tank shell is made with automotive metal baking paint, being高档 and fashionable， elegant and generous， with various colors to meet customers' personalized needs；

. The heat exchange coil has been optimized in design， using specially made jackets to prevent vibration and wear， significantly enhancing the heating efficiency and extending the service life.

  The material of the heat exchange coil can also be nickel-titanium alloy tubes used for making coins， improving the heating efficiency and having a longer service life；

. The volume of the water tank inner liner can be from 80L to 1000L， and it can be produced in various sizes；

. The water tank uses rubber foot pads， which never age， have a long service life， and enhance the product safety.

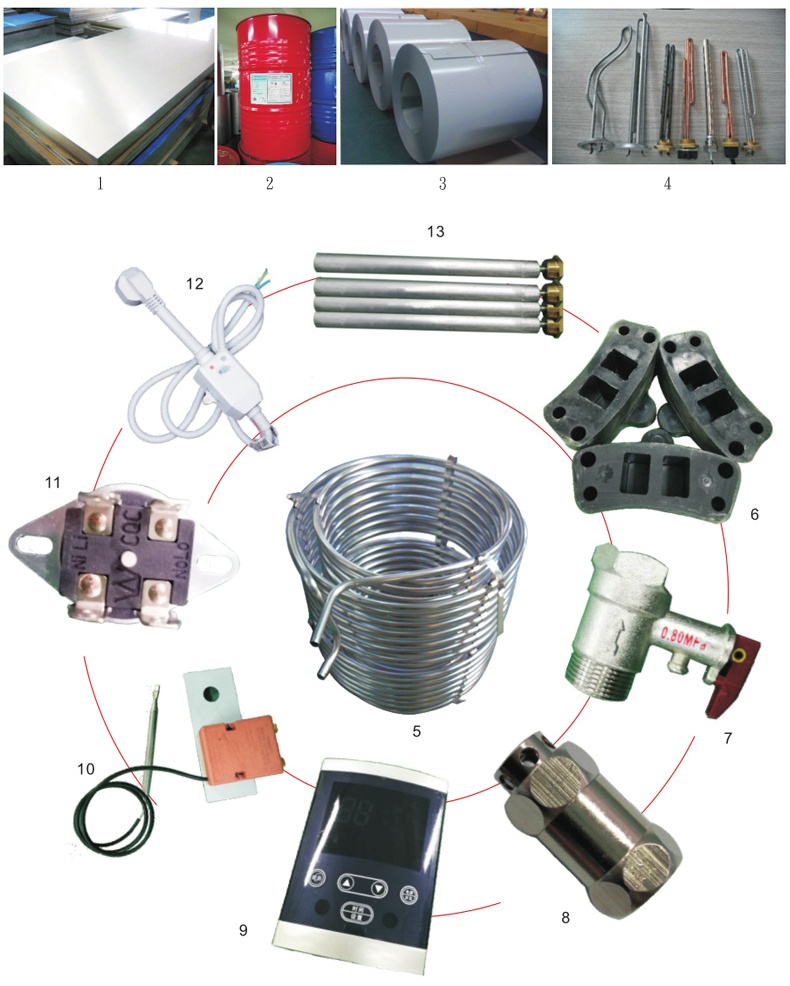

Reliable materials, comfortable products

1. Inner tank sheet: Made of high-quality Baixin board, with good tensile performance, guaranteed pressure-bearing capacity, and long service life.

2. Foaming material: China Wanhua polyurethane, fluorine-free and environmentally friendly, with excellent insulation effect.

3. Color steel sheet: Produced by a major factory, with various colors and styles, high strength, corrosion-resistant, non-fading, and non-peeling.

4. Tube: High-quality 316L stainless steel pipe, capable of withstanding 12.5 MPa pressure, with extremely high pressure-bearing capacity and extremely high corrosion resistance. It can be designed in double or triple coils, with excellent heat exchange effect.

5. Rubber base feet: Made of EPD rubber feet, non-toxic and environmentally friendly, never aging.

6. Safety valve: Copper top pin, long service life, ensuring the safety of water tank pressure.

7. Negative pressure valve: Ensuring that the water tank does not collapse when generating negative pressure.

8. Electric heating: Using Inglise material heating tubes, safe and with long service life.

9. Intelligent controller: Can be set for timing and temperature, can control temperature difference circulation, and has multiple control modes to meet various control requirements of the system.

10. Mechanical temperature limiter: Limits the temperature of the water tank to ensure user safety and prevent scalding.

11. Anti-dry-burn thermal sensitive switch: Automatically cuts off power when the electric heating is dry-burned, non-automatic reset, ensuring the safety of the water tank.

12. Power cord with leakage protection plug: Certified by CCC, quick power-off, leakage protection expert.

13. Terminal: Refer to the five-star brochure.

14. Magnesium rod: Produced by Beijing Metal Research Institute, significantly increasing the service life of the water tank.
