4-Way Ceiling Cassette Fan Coil Unit

Product Overview
Tongbaote 4-way ceiling cassette fan coil unit (FCU) is a recessed hydronic terminal air conditioning unit designed for commercial central air conditioning systems. Installed flush into the ceiling, only the decorative panel is exposed, keeping the interior aesthetic without occupying usable floor space.

This cassette FCU delivers balanced cooling and heating with four-direction air supply. Equipped with built-in condensate drain pump as standard, it solves drainage troubles effectively. We provide 2-pipe and 4-pipe models to meet different building HVAC design requirements. Widely matched with AHU, chiller and heat pump systems for various commercial projects.
Core Features
✅ Recessed ceiling installation, decorative panel for seamless interior decoration

✅ 4-way air discharge, even air circulation and uniform room temperature

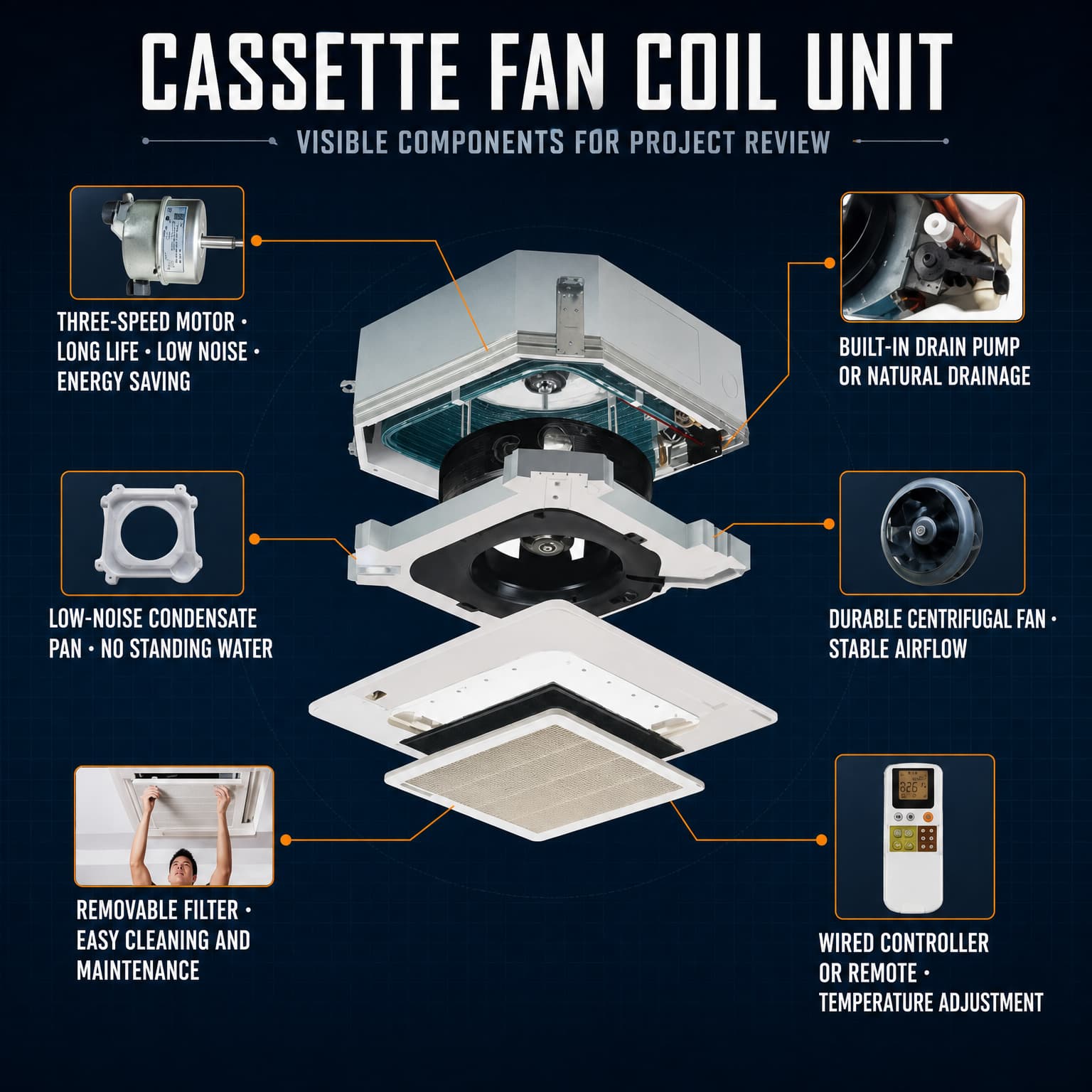

✅ Built-in condensate lifting pump, flexible piping layout, anti-leakage

✅ Optional EC motor, lower power consumption and quieter operation

✅ Multiple static pressure options for different ceiling duct designs

✅ 2-pipe / 4-pipe configuration available for different HVAC schemes

✅ Easy access panel for routine filter cleaning and maintenance

✅ Optional thermostat and wired remote control

✅ OEM & ODM support: custom panel, airflow, voltage and special coating

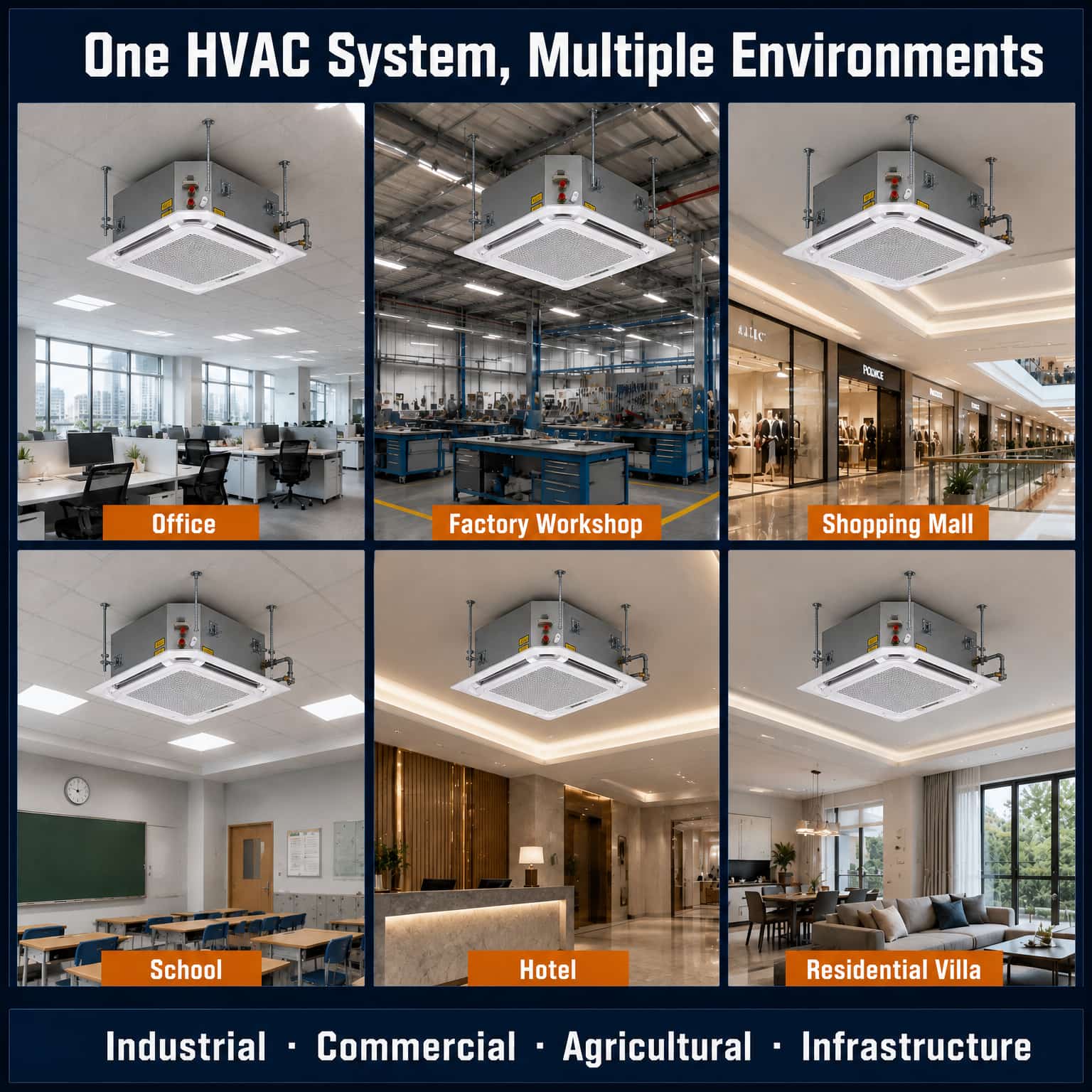

Application Scenarios

-Hotel guest rooms, lobby and restaurant

-Office buildings, meeting rooms

-Shopping malls, retail stores

-Hospitals, clinics and nursing facilities

-Exhibition halls, leisure centers

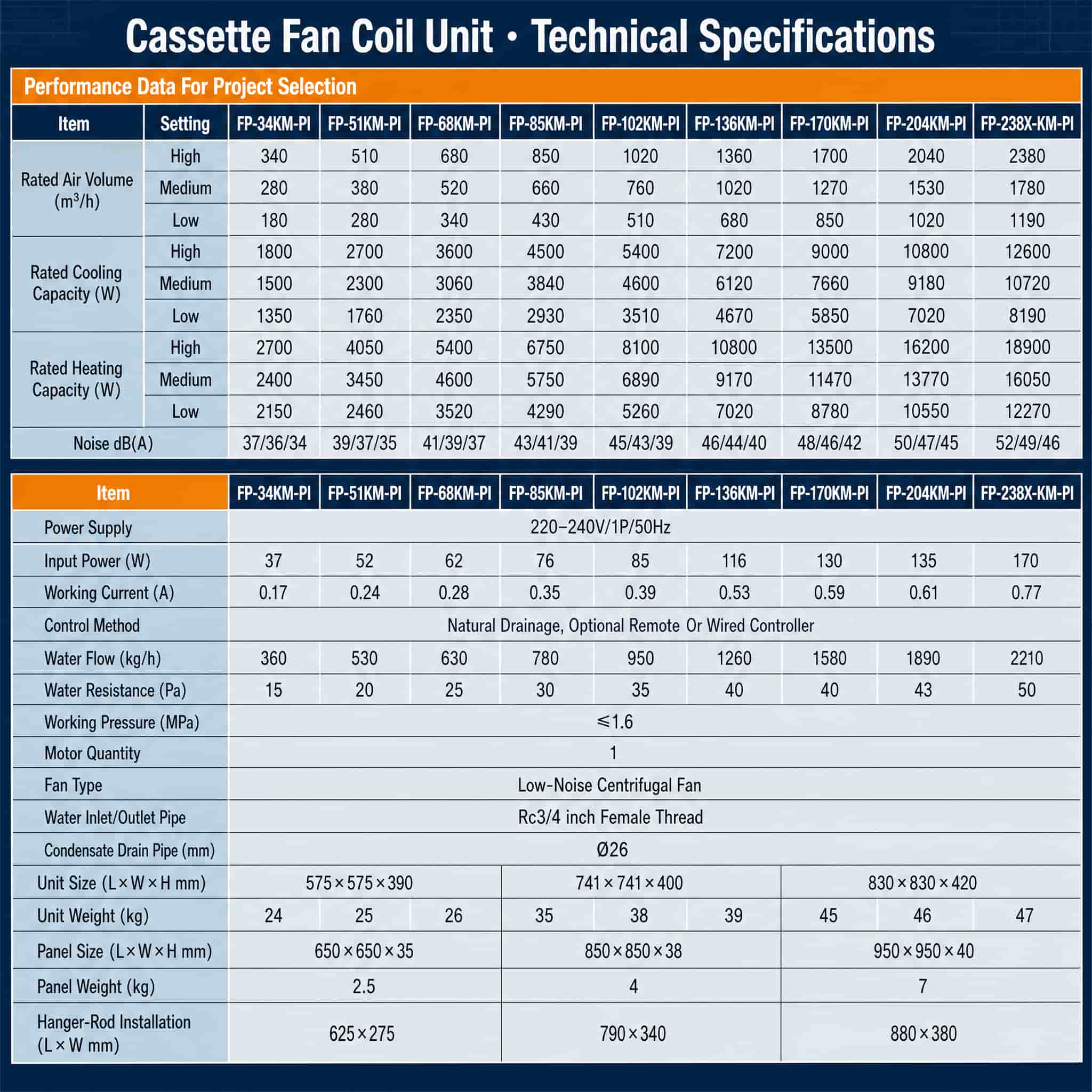

Technical Parameters
Airflow: 340 ~ 2040 m³/h for selection

Working system: 2-pipe (cooling only / cooling+heating) / 4-pipe (simultaneous cooling & heating)

Fan motor: AC motor / energy-saving EC motor optional

Drainage: Built-in condensate drain pump

Power supply: 220V/50Hz/60Hz; custom voltage like 380V/415V available

Material: Galvanized steel casing, durable ABS decorative panel
Why Choose Tongbaote Cassette FCU
Tongbaote Intelligent Technology is a professional HVAC manufacturer with over 35 years of technical experience and 18 years export experience. Our fan coil units are manufactured following European standards and exported to more than 40 countries.

We supply full set HVAC products including AHU, fan coil units, heat pumps and industrial air conditioners. Our team offers one-stop solutions from project design, manufacturing to installation guidance and after-sales support. Customized service is available to satisfy unique commercial project requirements.
Get Your Project Solution
Send us your project information such as room size, cooling load, pipe type and voltage requirement. Our HVAC engineers will provide technical datasheet and competitive quotation for your cassette fan coil unit project.
